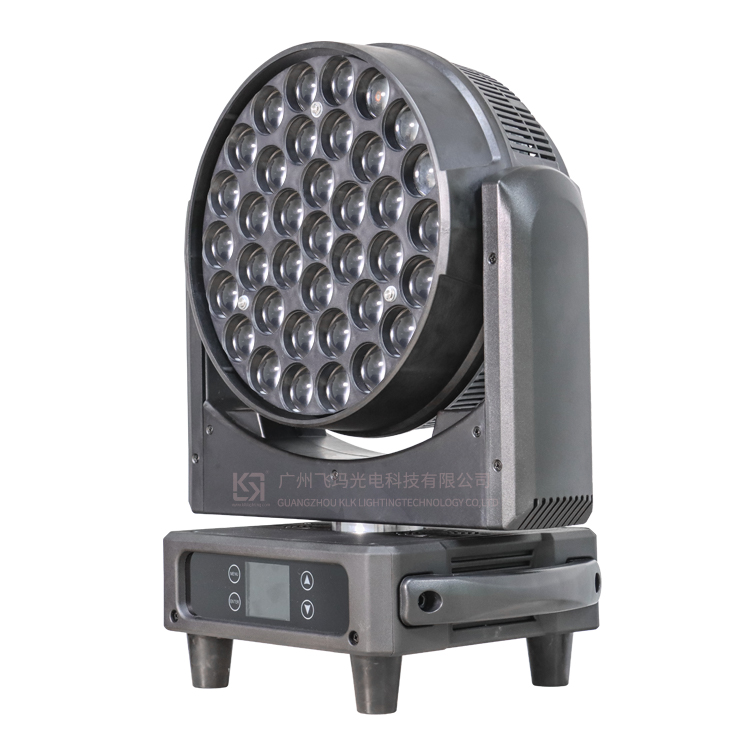

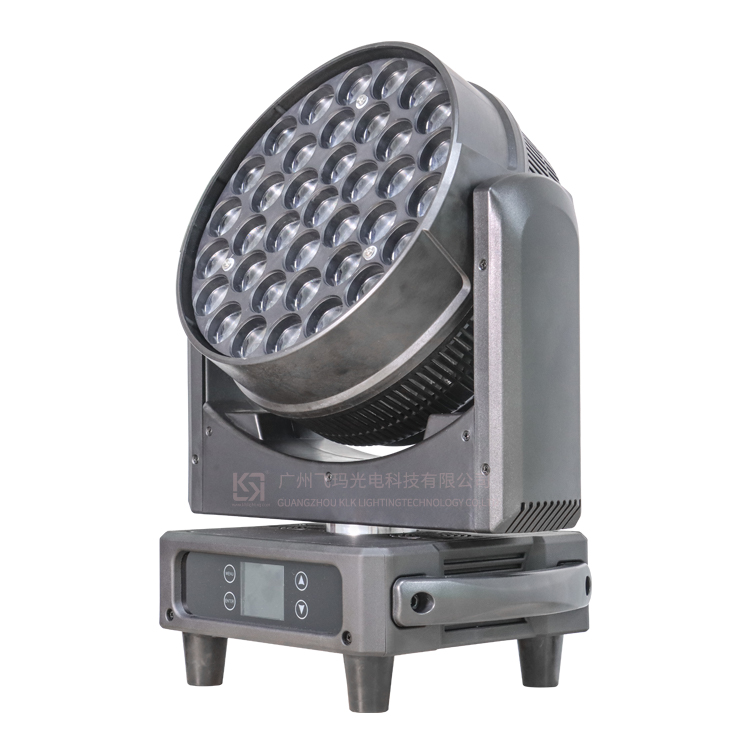

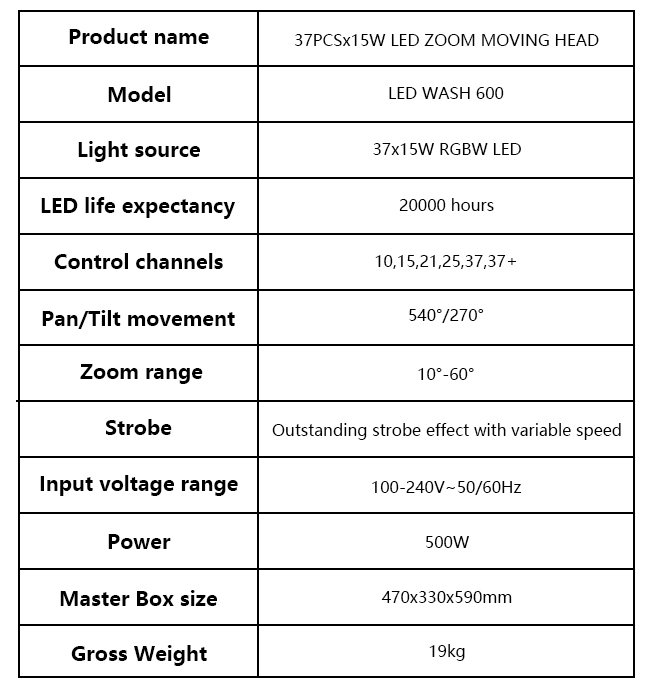

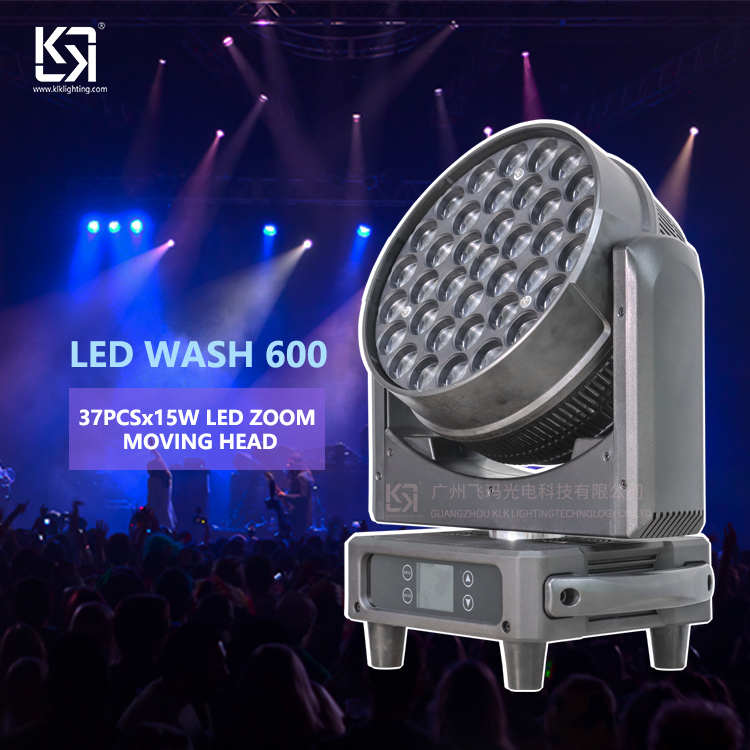

LED WASH 600  37PCSx15W LED ZOOM MOVING HEAD

Features

Light source: 37x15W RGBW LED

LED life expectancy: 20000 hours

With powerful beam and wash effects

Individual control of each LED rings

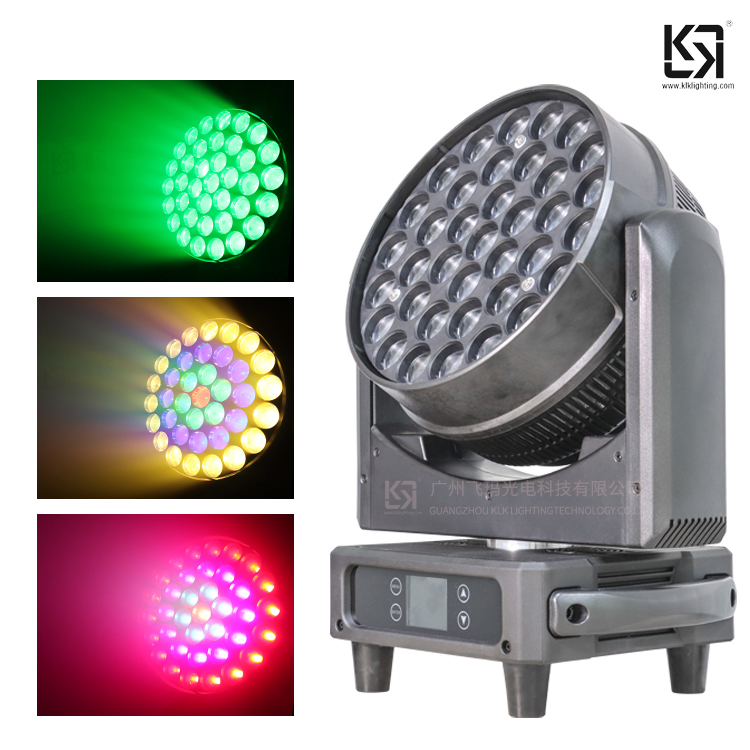

Outstanding color macro effect

Variable CTO: 2500K - 8000K

Electronic linear zoom system

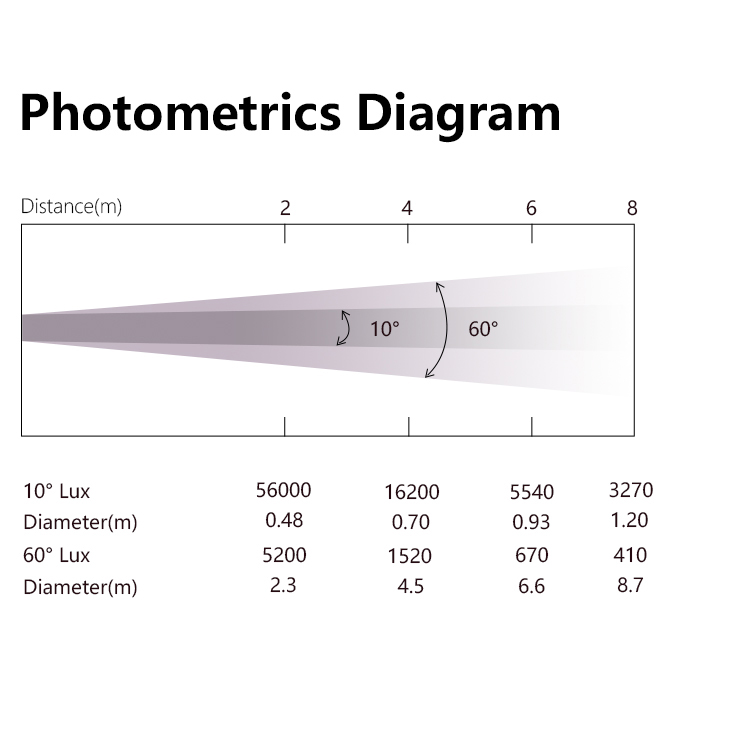

Zoom range: 10°~60°

Outstanding strobe effect with variable speed

0~100% smooth dimming

Maximum connected quantity:

· 3 sets (120V, 60Hz)

· 5 sets (230V, 50Hz)

Control and Program

Protocols: DMX512, Master slave, Sound Active, RDM

DMX Protocol modes: 6

Control channels: 10,15,21,25,37,37+

Pan/Tilt Resolution: 16 bit

Dimmer: 16 bit

Upgrade the firmware via DMX link

PAN & TILT

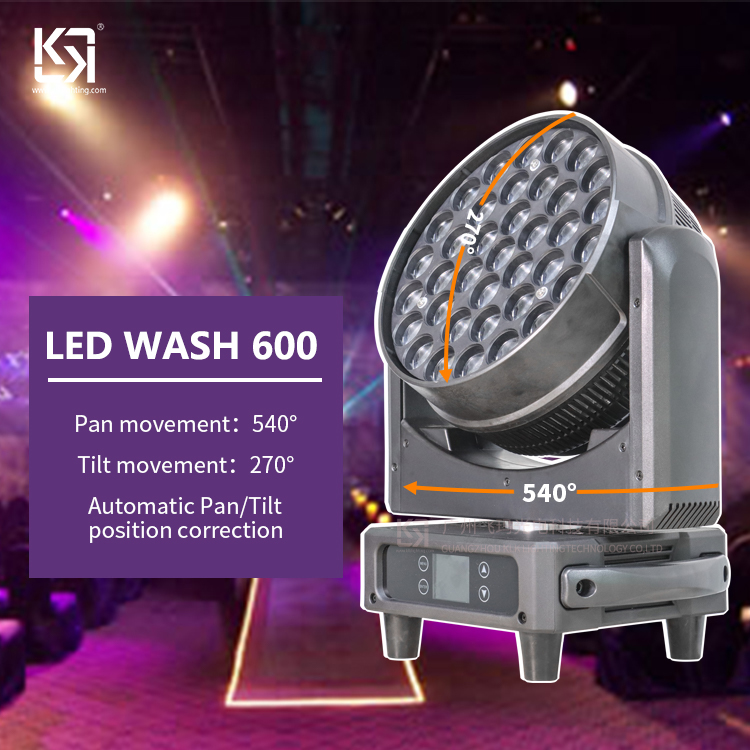

Pn/Tilt movement: 540° / 270°

Automatic Pan/Tilt position correction

Construction

Display: LED 2.4G color screen + 4 touch buttons selection menu

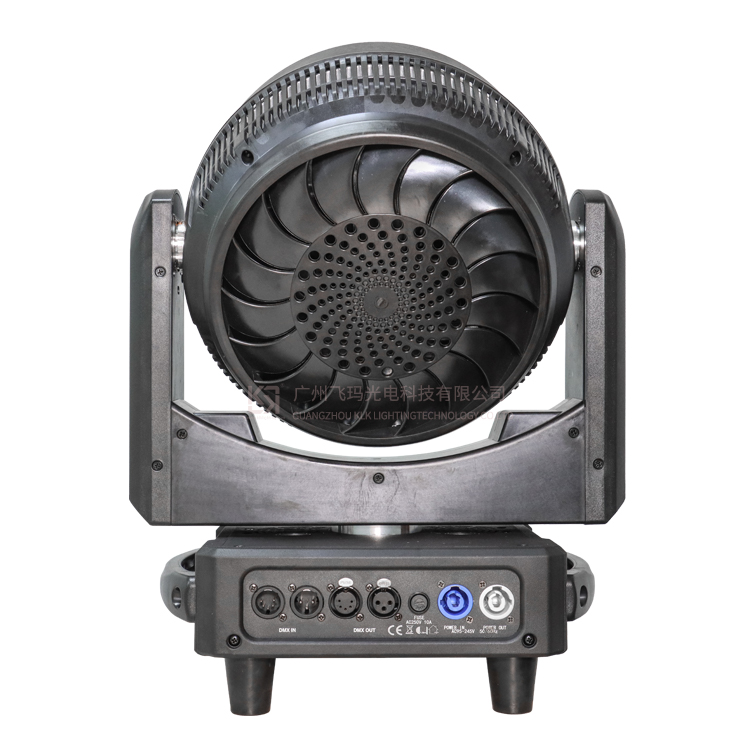

Data in/out: 3-pin and 5-pin XLR

Power In/Out: Power Connector in/out

Protection Rating:IP20

Automatic Pan/Tilt position correction

Electrical and Connectors

Power supply with electronic auto-ranging

Input voltage range: 100–240V~ 50/60Hz

Power consumption: 500 W

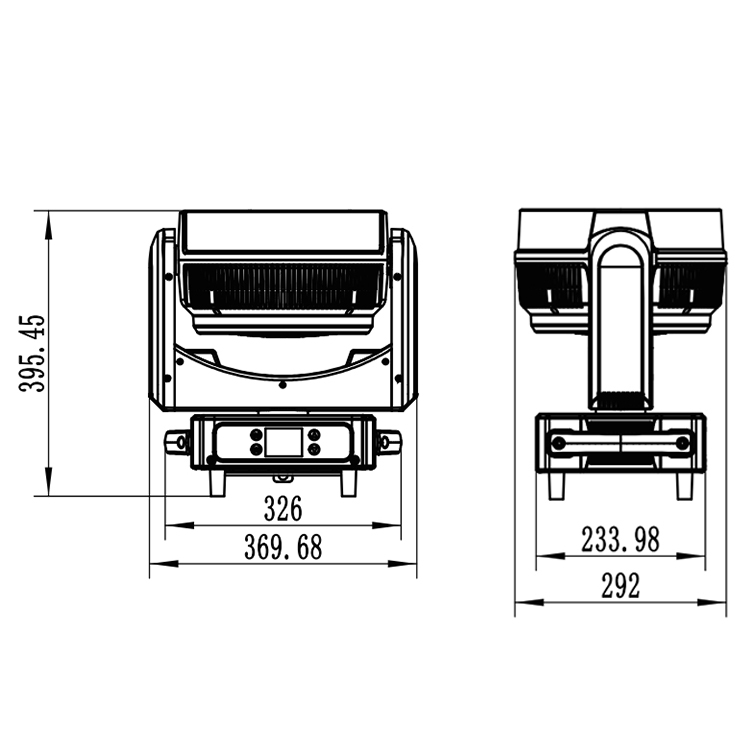

Box Dimensions:470x330x590mm

F/C Dimension:750x440x700mm

Weight:19KG

F/C weight:65KG(Dual loader Case)

Included Items

User Manual

Power Cable

2x Fast-locked clamps
