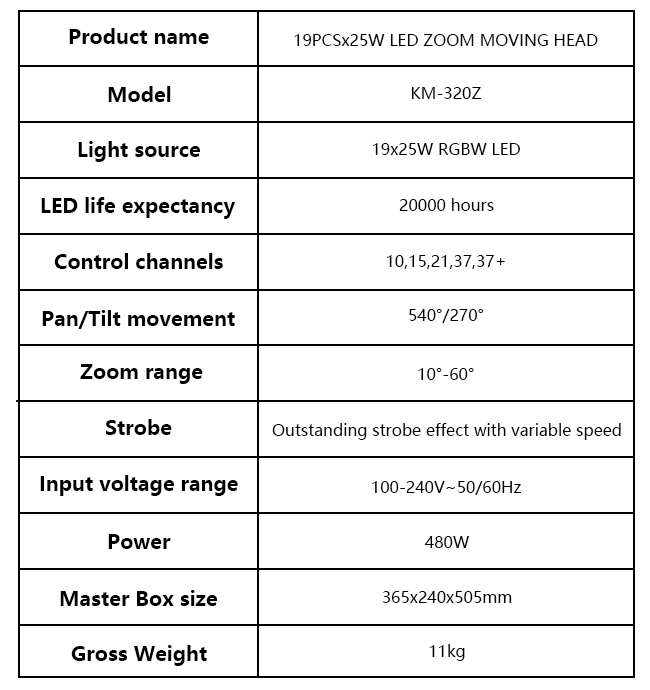

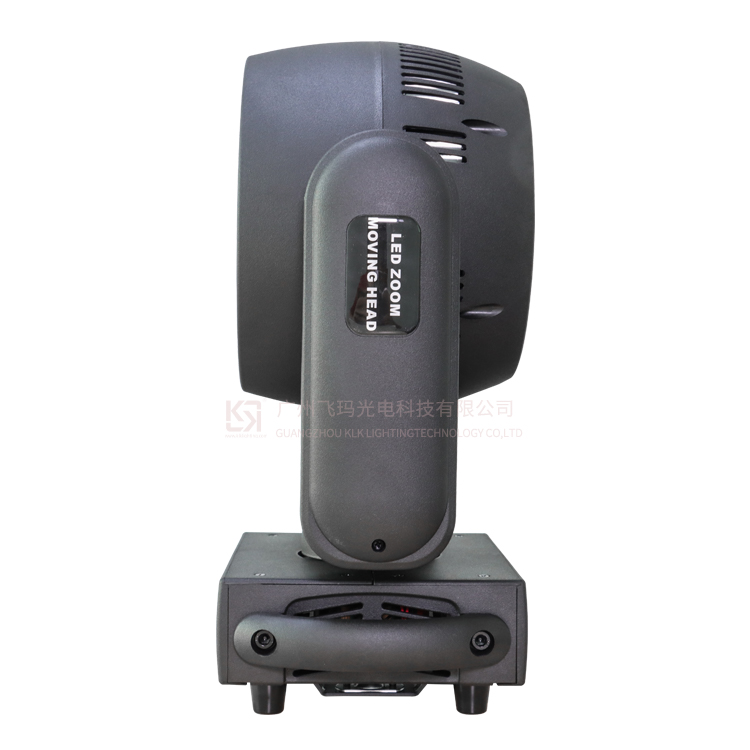

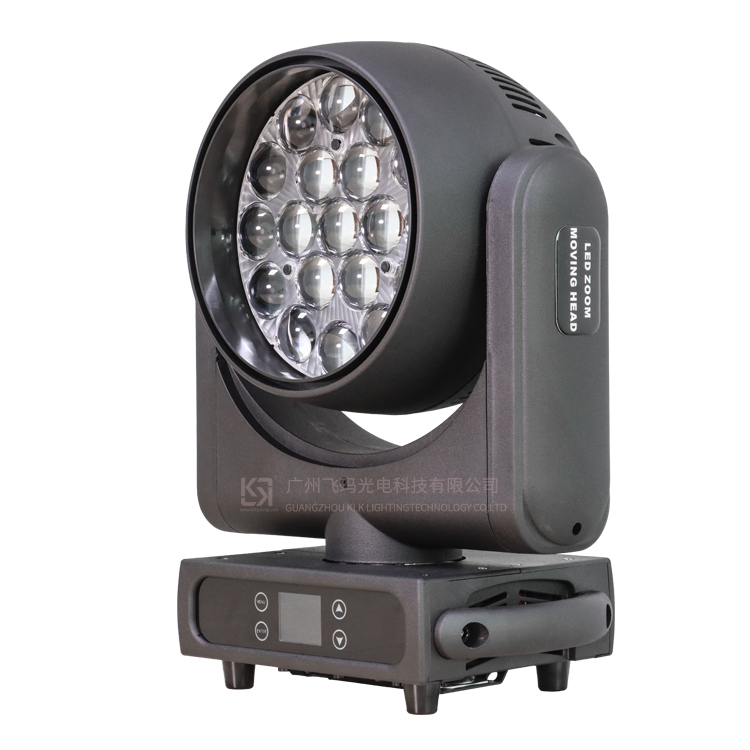

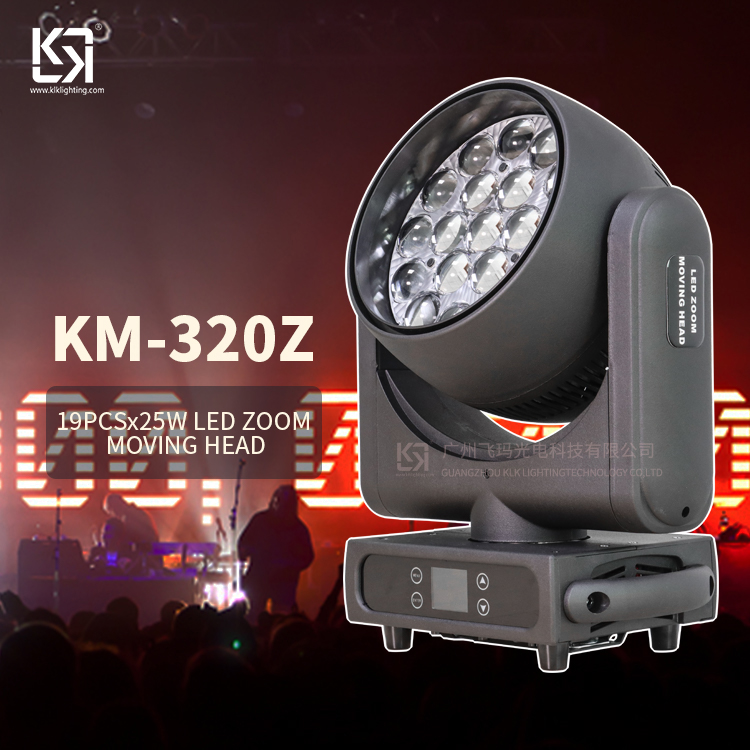

KM-320Z 19PCSx25W LED ZOOM MOVING HEAD

Features

Light source: 19x25W RGBW LED

With powerful beam and wash effects

Individual control of each LED rings

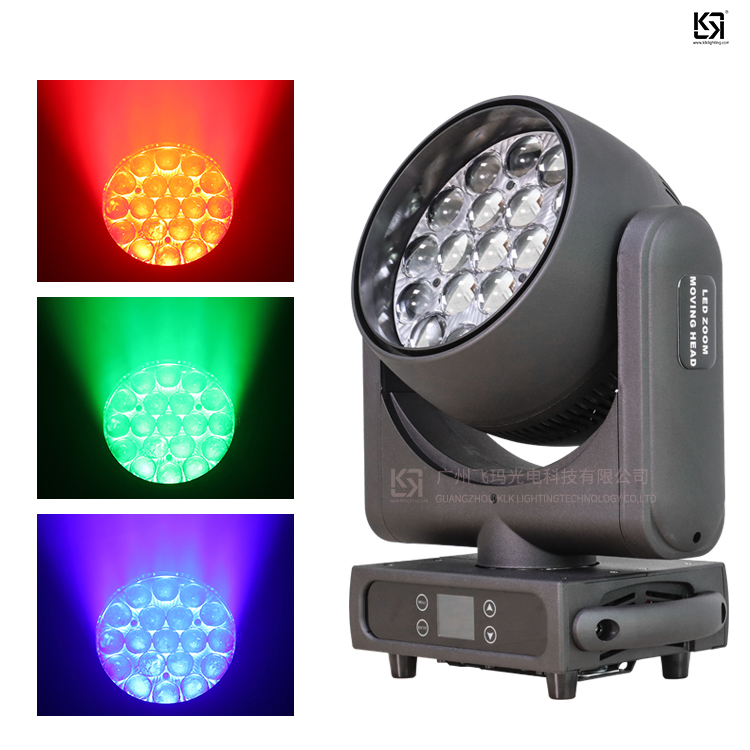

Outstanding color macro effect

Variable CTO: 2500K - 8000K

Motorized linear zoom system

Zoom range: 10°~60°

Outstanding strobe effect with variable speed

0~100% smooth dimming

Fast and mute operating

Flicker free management

Dust-proof and oil-proof design

Maximum connected quantity:

6 sets (120V, 60Hz)

11sets (230V, 50Hz)

Control and Program

Protocols: DMX512, Master slave, Sound Active, RDM

DMX Protocol modes: 5

Control channels: 10,15,21,37,37+

Pan/Tilt Resolution: 16 bit

Dimmer: 16 bit

Upgrade the firmware via DMX link

PAN & TILT

Pan/Tilt movement: 540°/ 270°

Automatic Pan/Tilt position correction

Construction

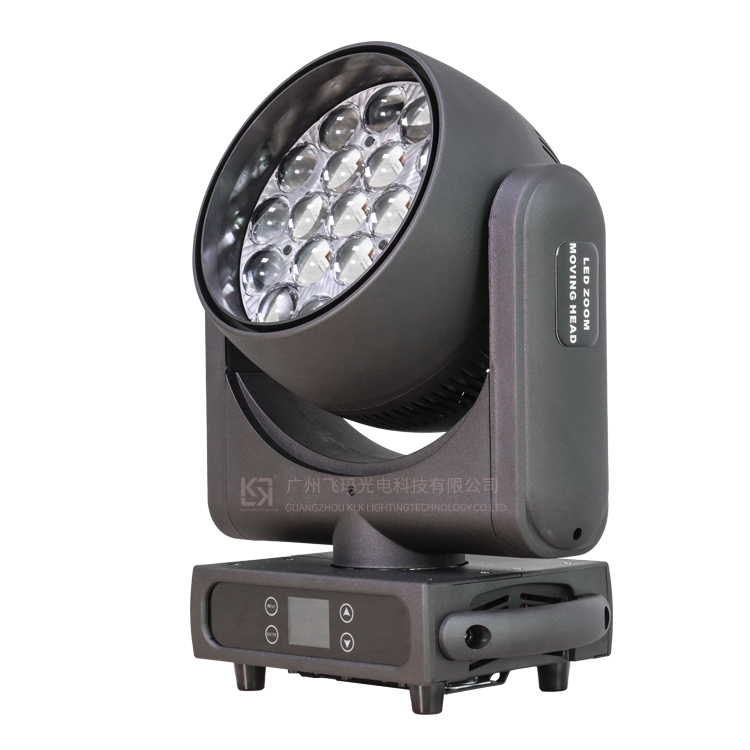

Display: LED 2.4G color screen + 4 touch buttons selection menu

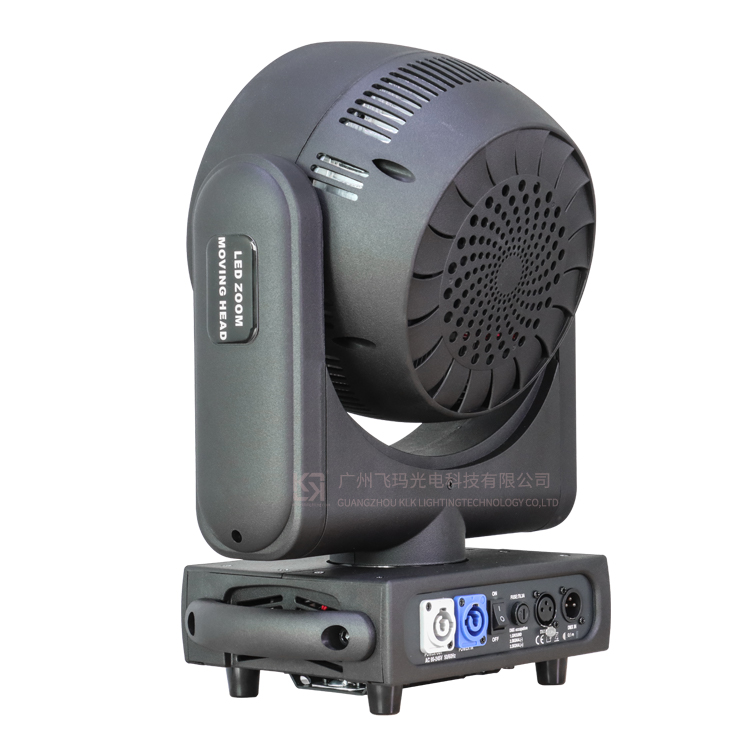

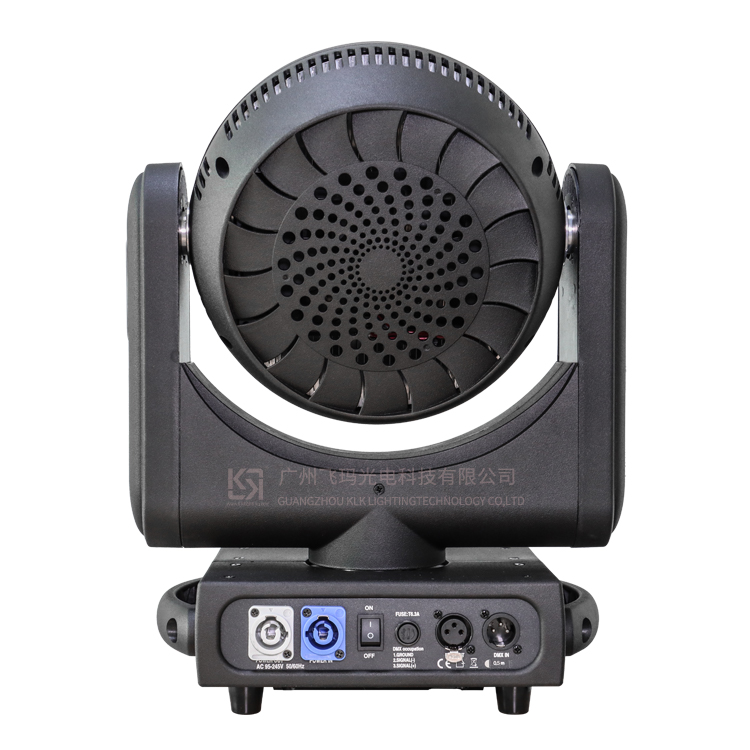

Data in/out: 3-pin and 5-pin XLR

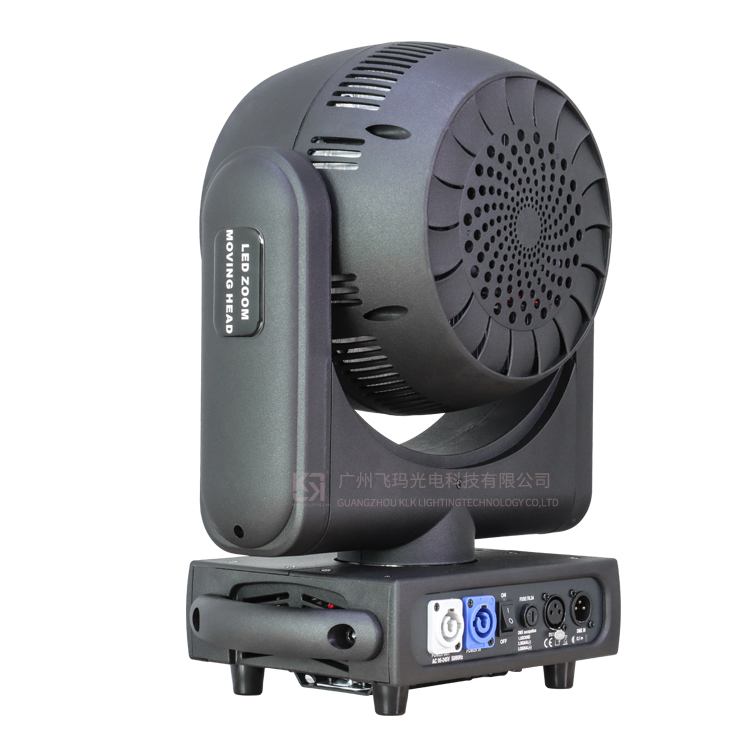

Power In/Out: Power Connector in/out

Protection Rating:IP20

Automatic Pan/Tilt position correction

Electrical and Connectors

Power supply with electronic auto-ranging

Input voltage range: 100–240V~ 50/60Hz

Power consumption: 480 W

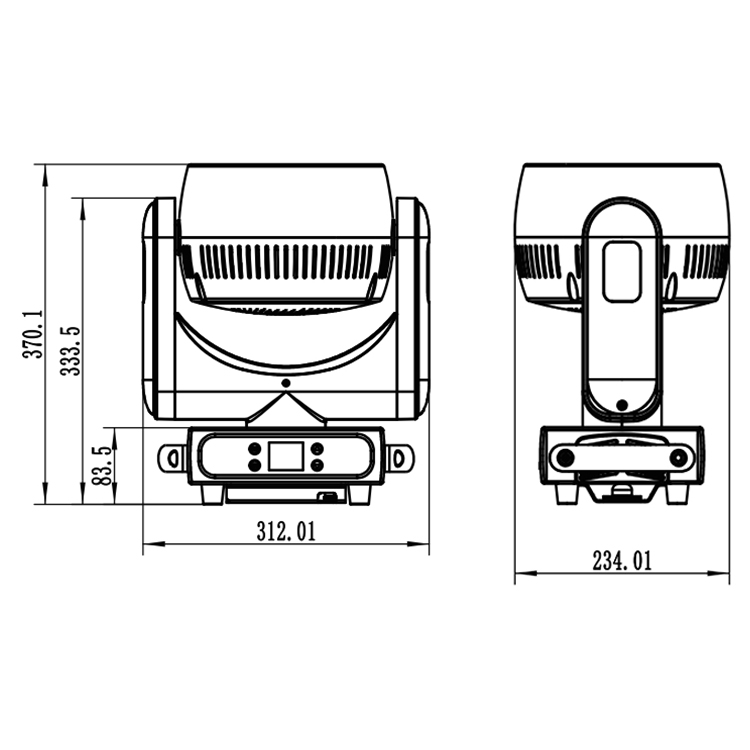

Box Dimensions:365x240x505mm

Weight:11KG

Included Items

User Manual

Power Cable

2x Fast-locked clamps
