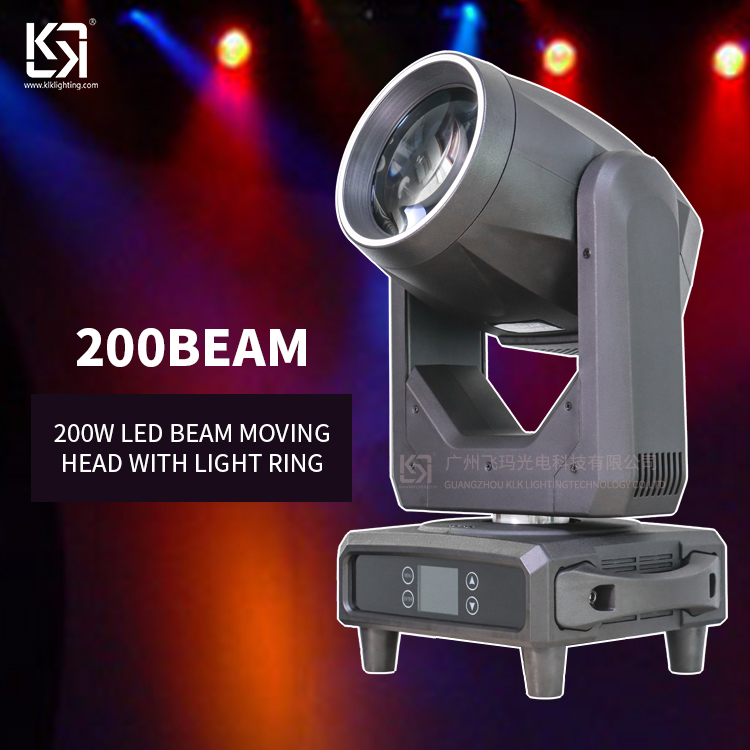

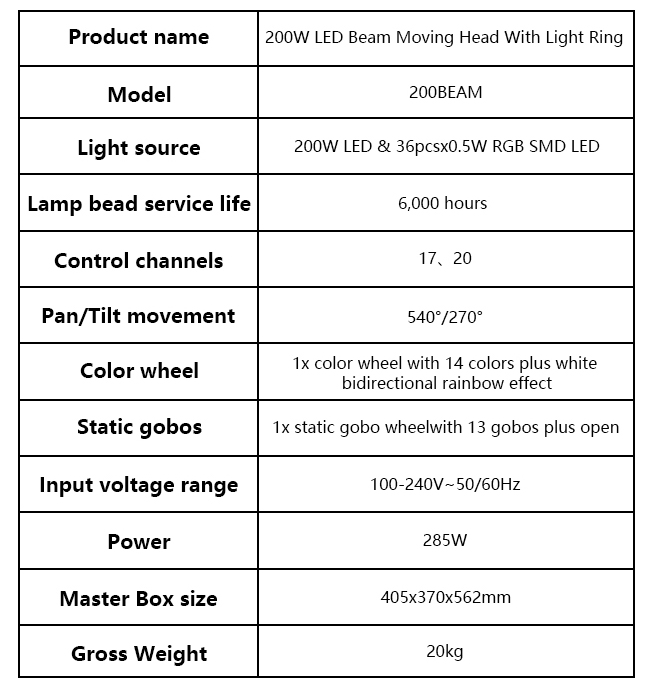

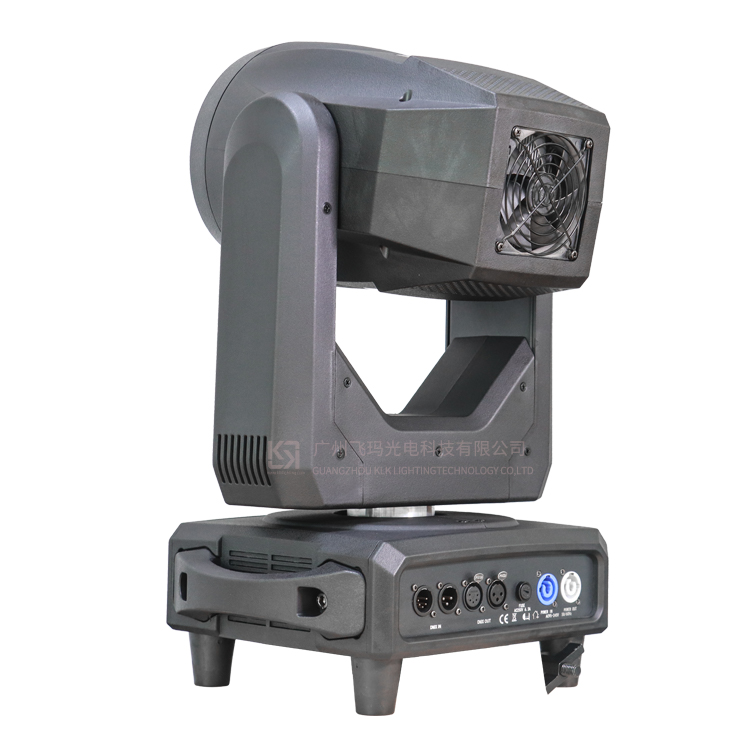

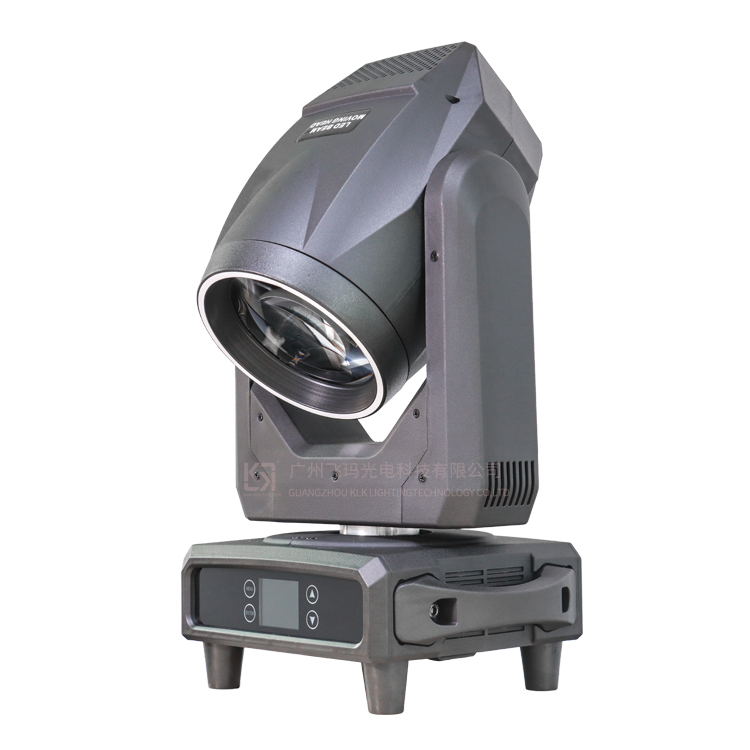

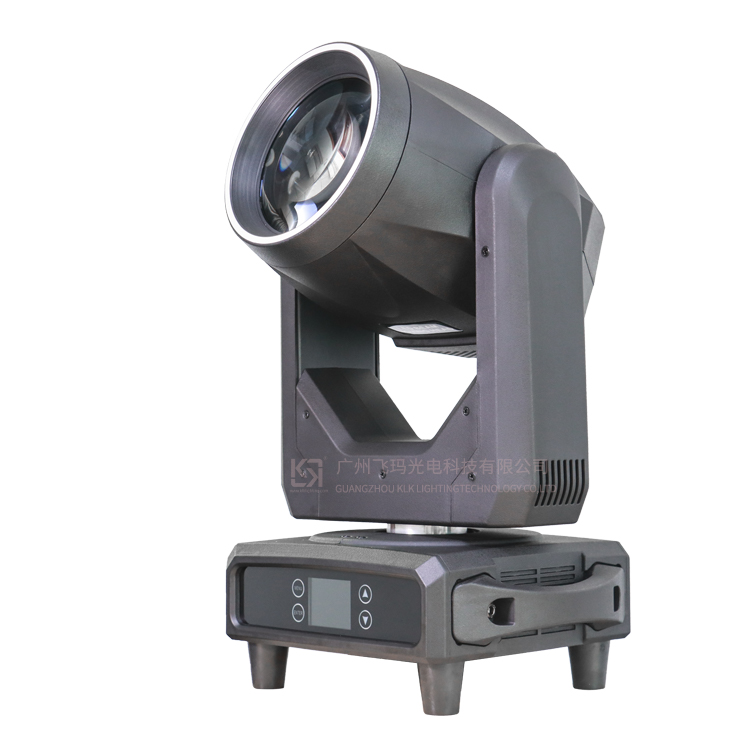

200BEAM 200W LED Beam Moving Head With Light Ring

Light Source

Light source: 200W LED & 36pcsx0.5W RGB SMD LED

Life expectancy:6,000 hours

Optical System

Advanced optical system ensure clear, sharp image quality

High-efficiency optical system

Beam angle: 0-4°

Control & Program

4-button touch panel

Display: Color display

Protocols: DMX512,Sound Active, Automatic,Master/Slave,RDM

DMX modes: 2

Control channels: 17,20 Channels

Pan/Tilt resolution: 16-bit

Firmware Upgrade via DMX link & USB

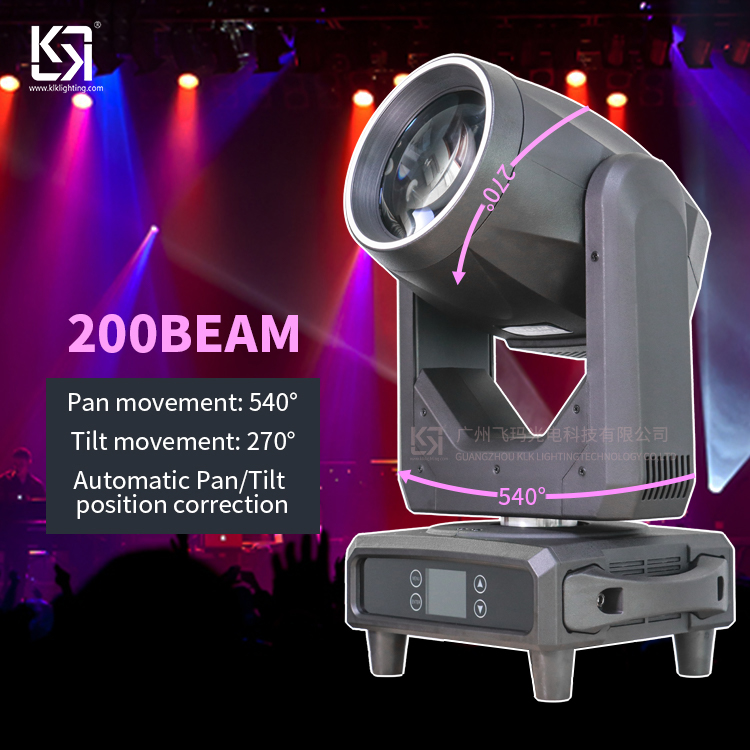

PAN & TILT

Pan movement: 540°

Tilt movement: 270°

Automatic Pan/Tilt position correction

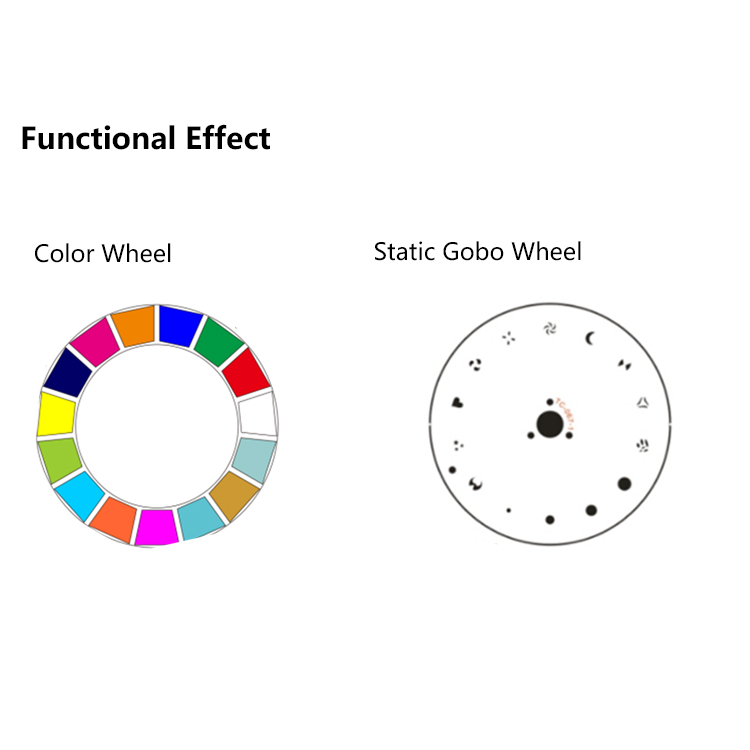

Static Gobos

1x static gobo wheelwith 15 gobos plus open

Color Wheel

1x color wheel with 14 colors plus white bidirectional rainbow effect

Prism

Equipped with 1 8-prism,24 prism,and tower mirror,the 16 prism can

rotate and overlap with the tower mirror or 8 prism in both directions,

also have atomized Colorful Plate

Prism

Equipped with 1 8-prism,16 prism,and tower mirror,the 16 prism can

rotate and overlap with the tower mirror or 8 prism in both directions

Electrical & Connectors

Power supply with electronic aut-ranging

lnput voltage range: 100-240V~50/60Hz

Power consumption:285W

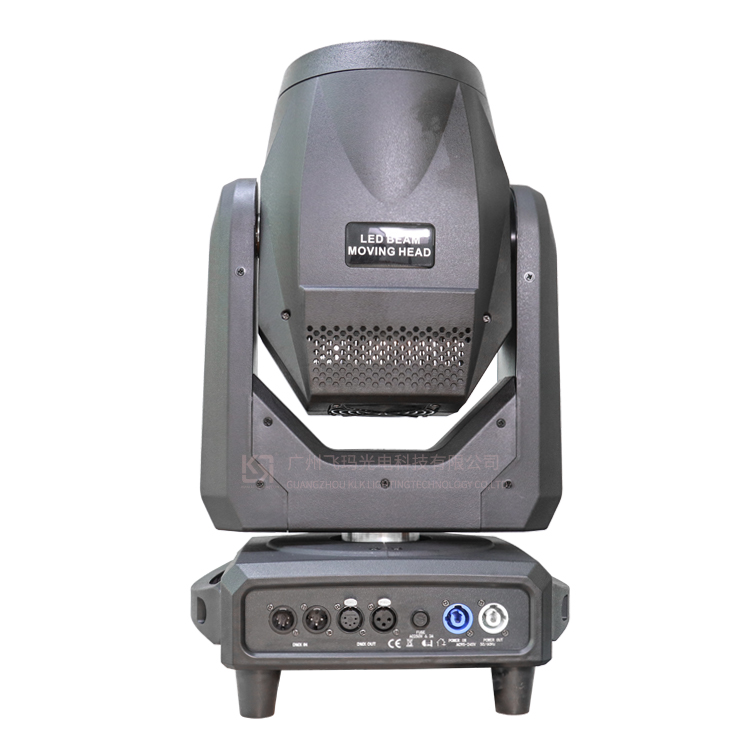

Power connector in/out

Data in/out: 3-pin or 5-pin XLR

Carton Dimensions: 405x370x562mm

Weight: 20kg
