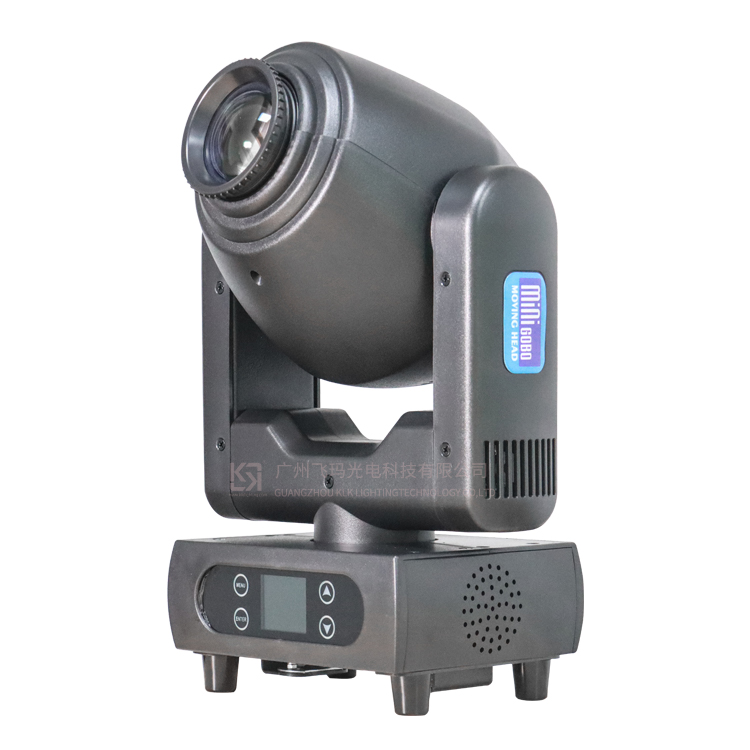

120W LED SPOT MOVING HEAD

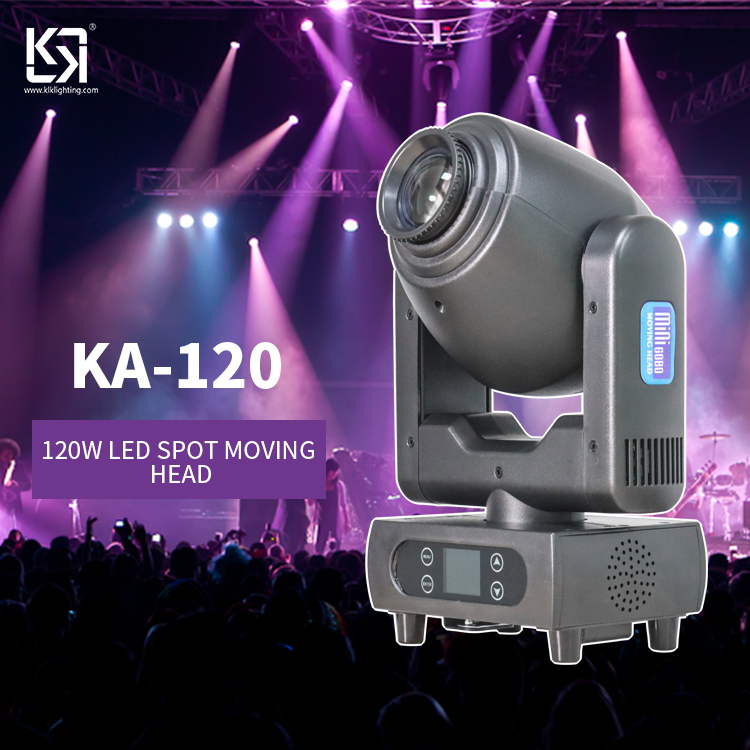

KA-120 LED SPOT MOVING HEAD 120W

Specifications

Light Source: 1 x 120W LED

Beam angle: 11-18 degrees manual adjustment

Control

DMX Channel: 15/18 channels

Control mode: DMX512 RDM voice control master-slave

Software upgrade: update software through DMX connection

Pan/Tilt

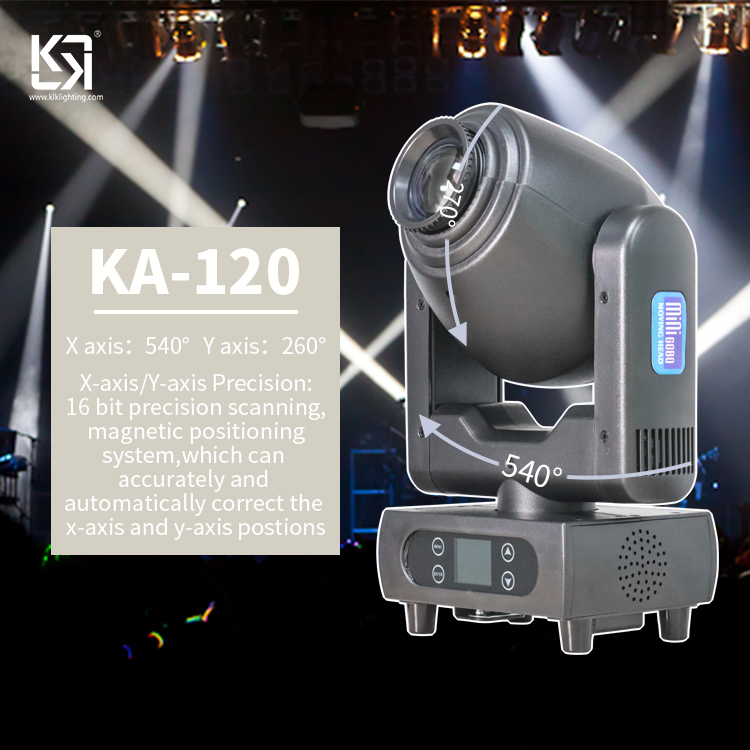

Pan/Tilt: 540°/ 260°

Pan/Tilt Resolution: 16 bit

Construction

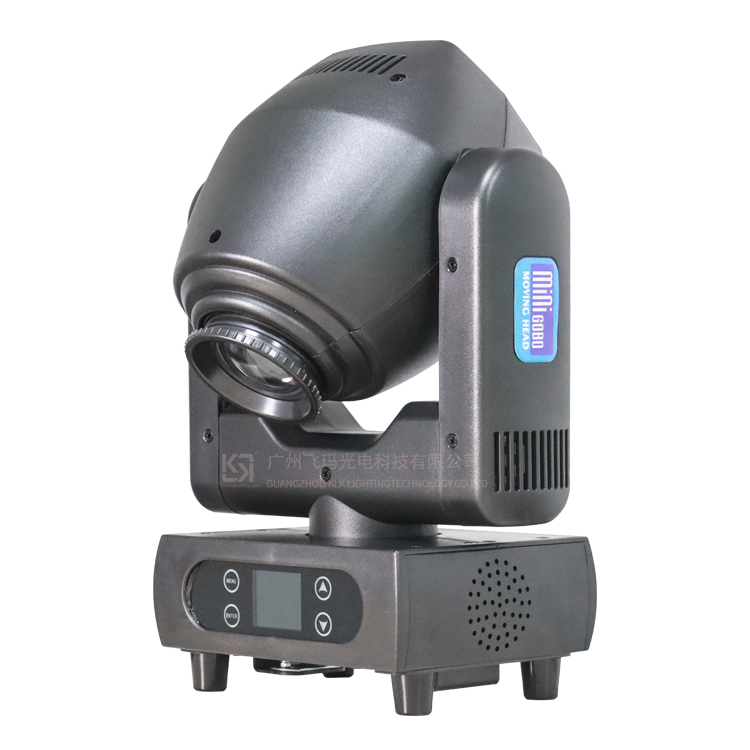

Display: LED Color display+4 buttons touch key

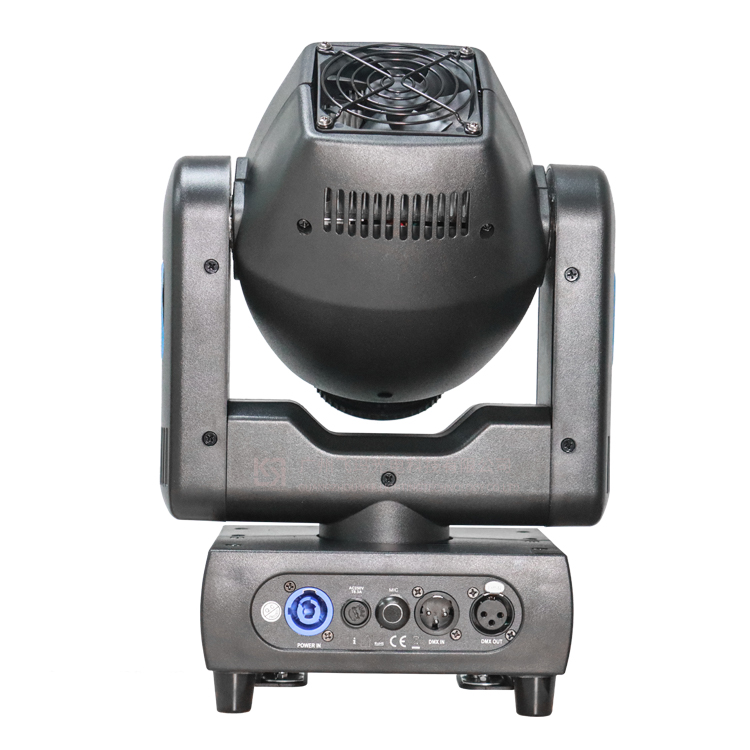

Data In/Out: 3-pin&5-pin XLR

Power in/out: PowerCon

Protection Rating: IP20

Features

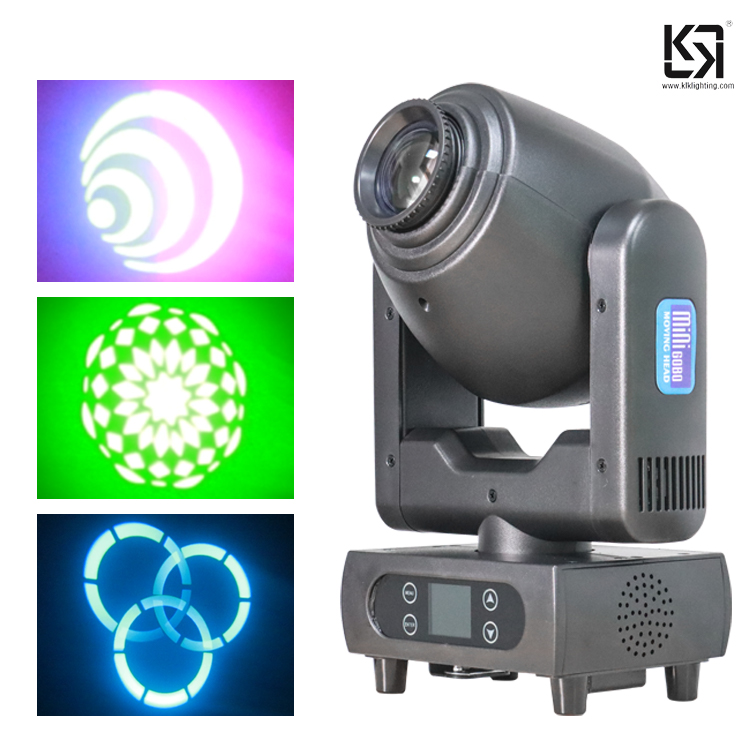

Pattern: 6 patterns + 1 white light can be bi-directional rainbow effect

Color: 6 colors + 1 white light can be bi-directional rainbow effect

Prism: 3 prism can be bi-directional rotation

Outstanding color macro effect

0~100% smooth dimming

Independent frost effect

Various strobe speeds

SPEC.

Electrical and Physical

Power Voltage: AC 100~240V, 50/60Hz

Power Consumption: 160W

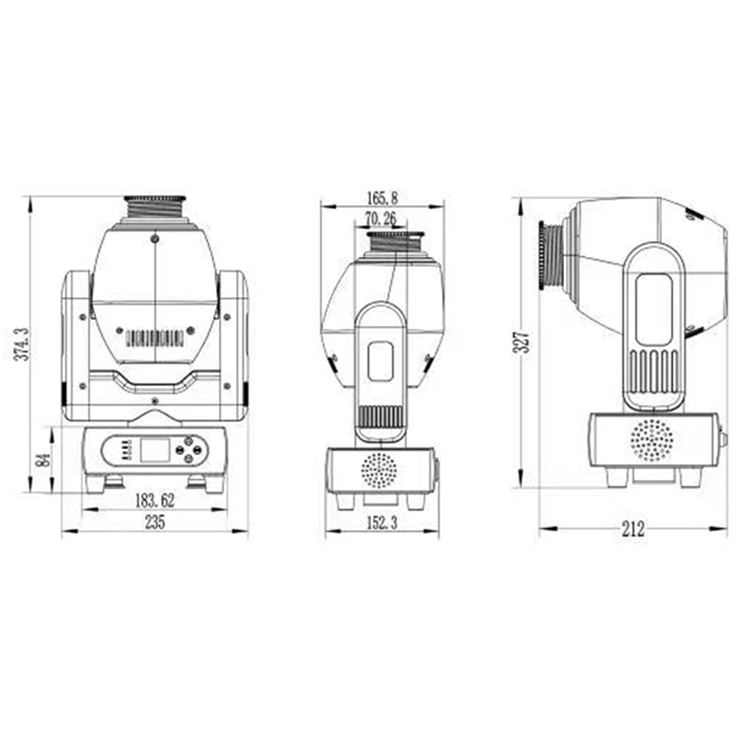

Dimensions: 235x153x375mm

Weight: 9Kg

暂无灯体尺寸信息

暂无演示视频信息

File Name

Description

Type

Download

120W LED Spot Moving Head English catalogue

KA-120

Data Manual

120W LED SPOT MOVING HEAD
