Beam Angle: 11° (on full open)

  2°/4°/6°/8°/10° (with beam reducer)

  3°/6°/9°/12°/15°/19° (with zoom lens)

Spot Angle: Fix Gobo: 10°→15°(with zoom lens)

Rotating Gobo: 10°→17°(with zoom lens)

Wash Angle: 15°~28°

Control

DMX Channel: 17/20 channels

Control Mode: DMX,Master/Slave,Sound Active

Firmware Upgrade: Update via DMX link

Pan/Tilt

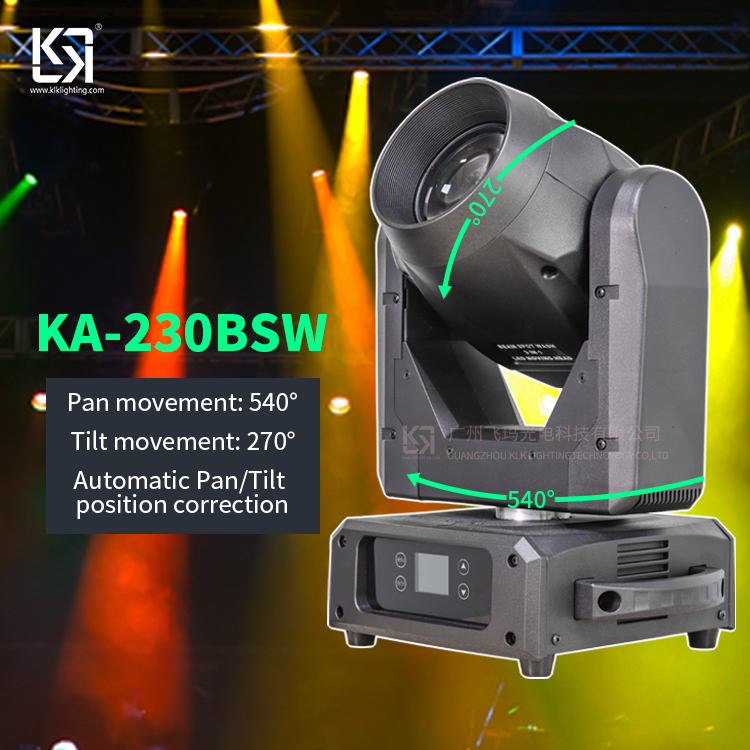

Pan/Tilt: 540°/ 270°

Pan/Tilt Resolution: 16 bit

Construction

Display: LCD display

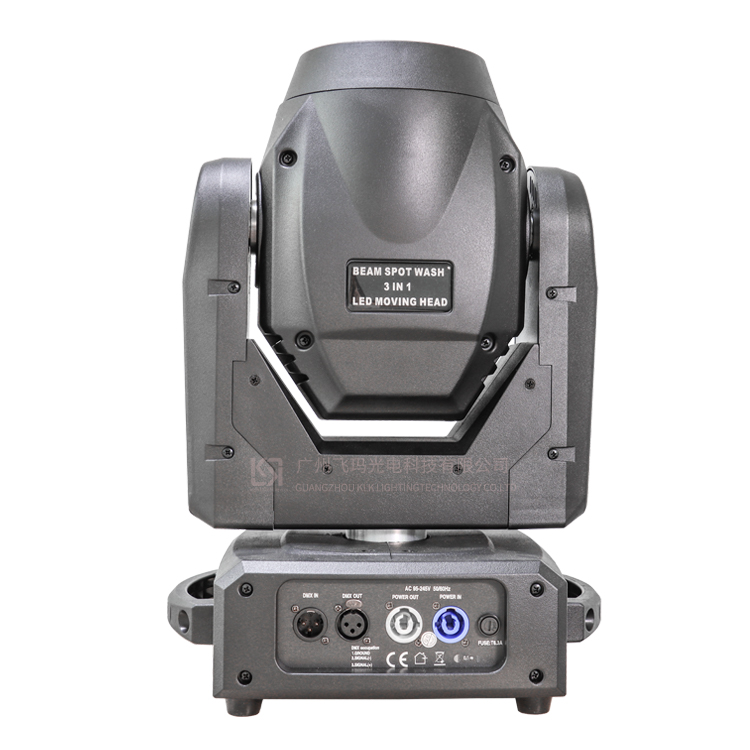

Data In/Out: 3-pin&5-pin XLR

Power in/out: PowerCon

Protection Rating: IP20

Features

Motorized focus

Color Wheel: 8 fixed colors plus white with rainbow effect

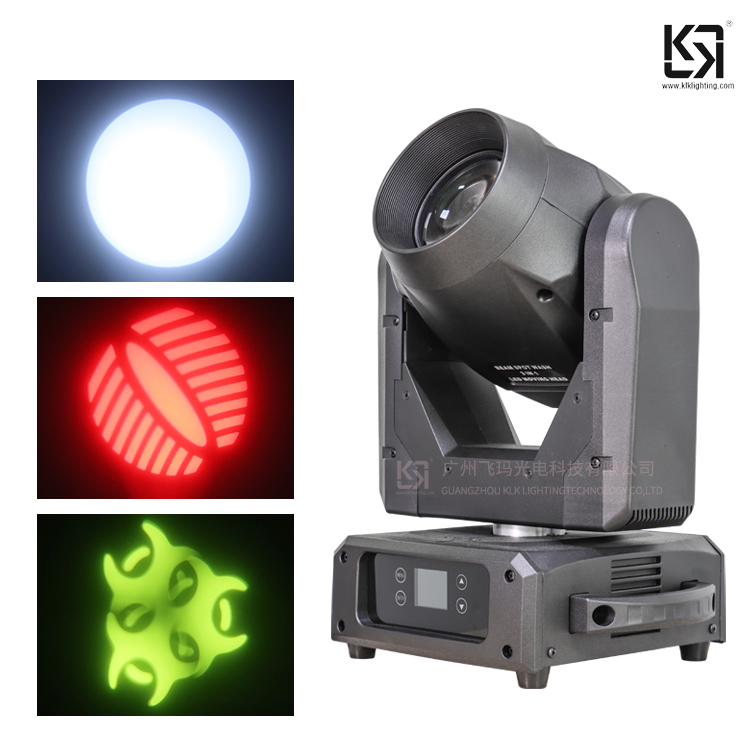

Gobo Wheel: 1 static gobo wheel with 6 gobos plus open

                      1 rotating gobo wheel with 6 gobos plus open

Gobo’s outside diameter: 23.8mm

Gobo’s image diameter: 20mm

3 facets prism rotating in both direction

Outstanding color macro effect

0~100% smooth dimming

Independent frost effect

Various strobe speeds

Integrated three features: beam, spot, and wash

Electrical and Physical

Power Voltage: AC 100~240V, 50/60Hz

Power Consumption: 270W

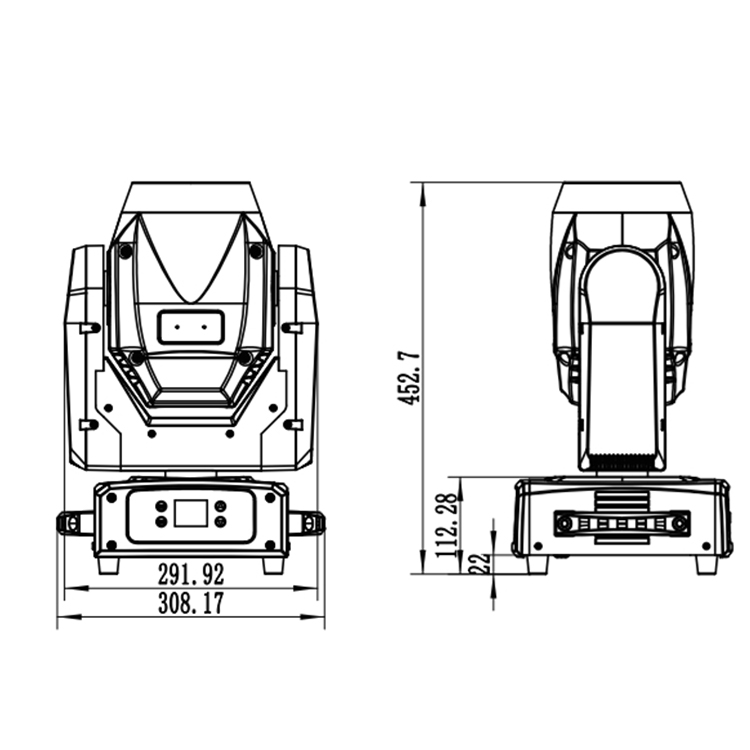

Master Box size：385x320x475mm

Gross Weight：14kg

Flycase 2 in 1: 690x380x630mm

Gross Weight：45kg

Flycase 4 in 1: 845x590x640mm

Included Items

User Manual

Power Cable

1x Fast-locked clamps
